In House ECU Software Logistics¶

Overview

This document is the introduction for the in-house ECU software [AppLogisticsData.json] setup.

Instruction¶

For all In-House ECUs, ECU tracker will read detail software information from the software zip file while building the software from ECU tracker.

After adding a new software into ECU tracker, the [Built] field should be marked as [False], which allow ECU tracker to call the Jenkins build job of the ECU Release Candidate to build the software.
In the software zip, a JSON file named [appLogisticsData.json] shall be included, which will allow ECU tracker to read detail information of the software(s) into the database.

Note

Each software zip should have one [appLogisticsData.json] file which can include multiple software entries.

The following fields are used in software logistics JSON file.

Field Single	Field Multiple	Required	Description
VER_MAJOR		Required	The Major version number
VER_MINOR		Required	The Minor version number
JENKINS_BUILDNUM			The build number of the Jenkins job
BUILD_DATE			The time of the Jenkins job
BUILDER_ID		Required
BUILD_TIME
VER_SUBMINOR	VERS_SUBMINOR	Required	The Subminor version number of each
RCNum		Required	The RC number of building
PROJECT_ID		Required
OWNER
APPLICATION_TYPE			The zip app type
APPLICATION_TYPES	APPLICATION_TYPES	Required	[ComponentTypes].
COMPONENT_NUMBER	COMPONENT_NUMBERS	Required	The component number of each
PART_NUMBER	PART_NUMBERS	Required	The software part number of each
FLASHING_LEVEL	FLASHING_LEVELS	Required	[FlashingLevels].
START_STRING	START_STRINGS	Required	The software start string of each
DESCRIPTION	DESCRIPTIONS		The description of each
GIT_HASH_10
autogen

Note

SoftwareVersion = {VER_MAJOR:02}.{VER_MINOR}.RC{RCNum}.{VER(s)_SUBMINOR}.{BUILDER_ID}

The software version will be redefined and update to the database based on the JSON logistics file.

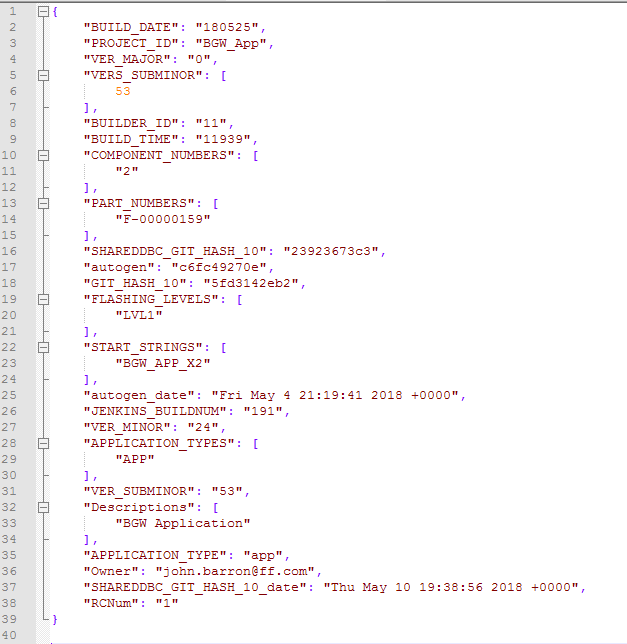

To define a single software component (one Hex file) example

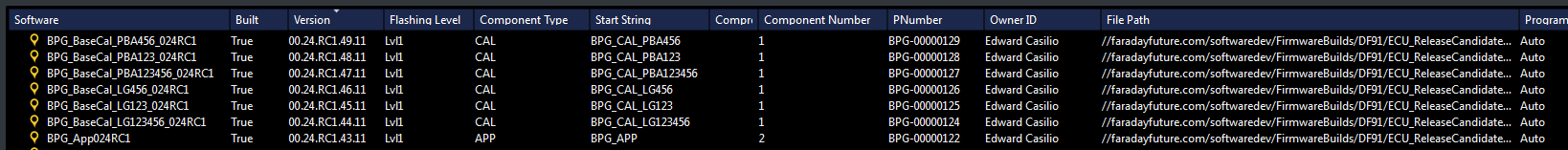

Check the result software updates in the ECU Tracker.

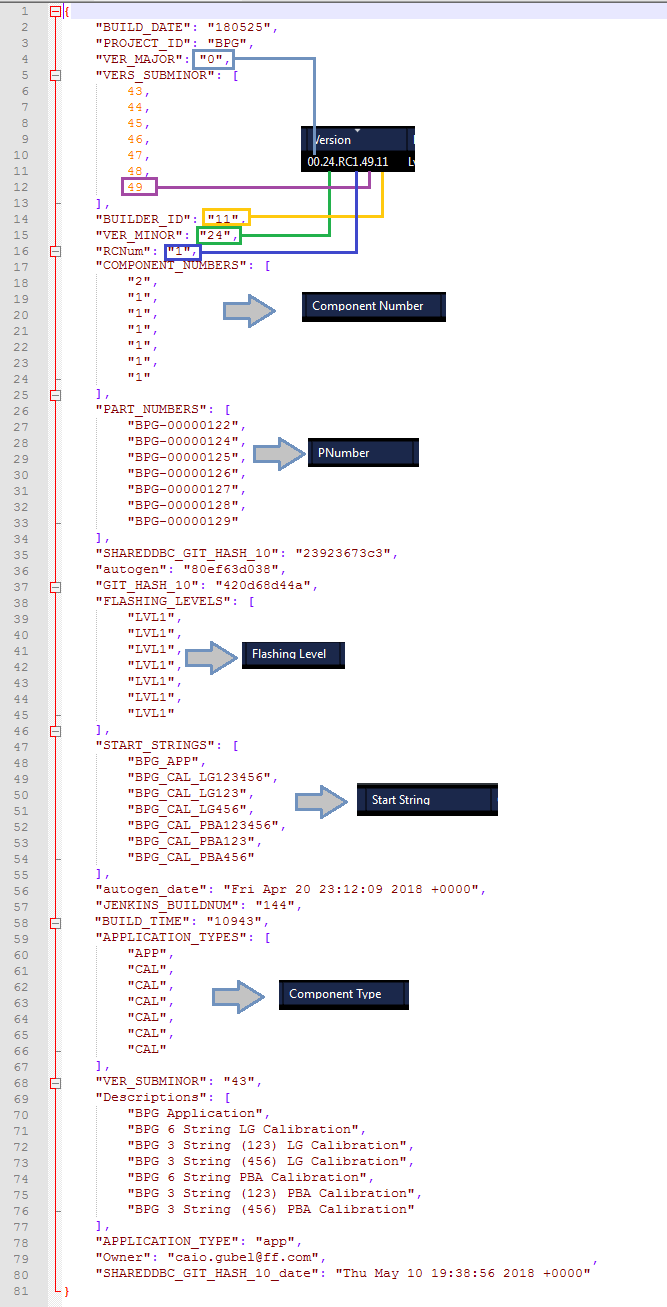

To define multiple software components (one Hex per component) example.

Check the result software update in the ECU Tracker.

ADB	Android Processes (NON OTA) including fastboot
JTAG	JTAG
Lvl1	Compliant No Seed and Key
Lvl2	Compliant Default Seed and Key
Lvl3	Compliant Full Security
NotC	Non-Compliant Bootloader
Read	Version can be Read but not Flashed
SWOTA	OTA Android or QNX process zip files (NOT FOR UDS/HEX files)
ODX	Diagnostic Type
err	Not filled correctly
None	None
